| Place of Origin: | zhejiang,China |
| Brand Name: | Buffalo |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Packaging Details: | in carton or wooden |
| Delivery Time: | In stock |
| Payment Terms: | T/T Western union,Paypal |
| Type: | Hydraulic Gear Pump | Displacement: | 33+29cc |
|---|---|---|---|
| Application: | JCB 3CX | Quality: | After Market New |
| Warranty: | 12 Months |

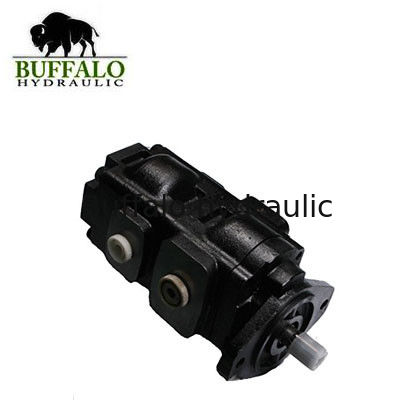

JCB 3CX ULTRA TWIN HYDRAULIC GEAR PUMP
Rotation-Counter-Clockwise (looking from shaft end)
1” Diameter Parallel keyed shaft
SAE B 2 Hole mounting flange
Front pump displacement 33 cc/rev (33L/Min per 1000 rpm)
Rear pump displacement 29 cc/rev (29L/Min per 1000 rpm)
Single 2” SAE flange inlet
Front pump outlet 1 1/16”-12 UNF threaded
Rear pump outlet 7/8”-14 UNF threaded
Maximum working pressure on front pump 275 bar
Maximum working pressure on rear pump 275 bar
Max. Input shaft torque 325 Nm
Replaces the following JCB part numbers
